Above 65% of new broadband deployments in metropolitan U.S. projects now call for fiber-to-the-home. That accelerated move toward full-fiber networks highlights the urgent need for reliable production equipment.
FTTH Cable Production Line
Fiber Ribbon Line
Fiber Secondary Coating Line
Shanghai Weiye Optic Fiber Communication Equipment Co (www.weiye-ofc.com) supplies automated FTTH cable line output line systems for the U.S. market market. Their turnkey FTTH Cable Production Line for High-Speed Fiber Optics brings together machines as well as control systems. This system produces drop cables, indoor/outdoor cables, together with high-density units for telecom, data centers, and LANs.
That modern FTTH cable making machinery delivers measurable business value. It offers higher throughput as well as consistent optical performance using low attenuation. It further meets IEC 60794 as well as ITU-T G.652D / G.657 standards. Customers see reduced labor costs and material waste through automation. Full delivery services deliver installation and operator training.
This FTTH cable manufacturing line package features fiber draw tower integration, a fiber secondary coating line, together with a fiber coloring machine. This system further adds SZ stranding line, fiber ribbone line, compact fiber unit assembly, cable sheathing line, armoring modules, and testing stations. Control together with power specs commonly use Siemens PLC featuring HMI, operating at 380 V AC ±10% as well as modular power consumption up to roughly 55 kW depending on configuration.
Shanghai Weiye’s customer support model covers on-site commissioning by experienced engineers, remote monitoring, as well as rapid troubleshooting. This system further offers lifetime technical support and operator training. Clients are commonly expected to coordinate engineer logistics as part of standard supplier practice when ordering from FTTH cable machine suppliers.
Main Takeaways
- FTTH cable line solutions meet growing U.S. demand for fiber-to-the-home deployments.
- Integrated turnkey packages from Shanghai Weiye combine automation, standards compliance, and operator training.
- Flexible modular systems use Siemens PLC + HMI and operate near 380 V AC with up to ~55 kW power profiles.
- Combined production modules cover drawing, coating, coloring, stranding, ribbon, sheathing, armoring, and testing.
- Modern FTTH cable manufacturing systems reduces labor, waste, and improves optical consistency.
- Service coverage includes on-site commissioning, remote diagnostics, and lifetime technical assistance.
Understanding FTTH Cable Line Technology
The fiber optic cable production process for FTTH demands precise control at every stage. Manufacturers use integrated lines that combine drawing, coating, stranding, and sheathing. This approach boosts yield and speeds up market entry. It serves the needs of both residential and enterprise deployments in the United States.
Below, we outline the core components and technologies driving modern manufacturing. Each module must operate with precise timing and reliable feedback. The choice of equipment shapes product quality, cost, and flexibility for various cable designs.
Core Components In Modern Fiber Optic Cable Manufacturing
Secondary coating lines apply dual-layer coatings, often 250 µm, using high-speed UV curing. Tight buffering together with extrusion systems provide 600–900 µm jackets for indoor and drop cables.

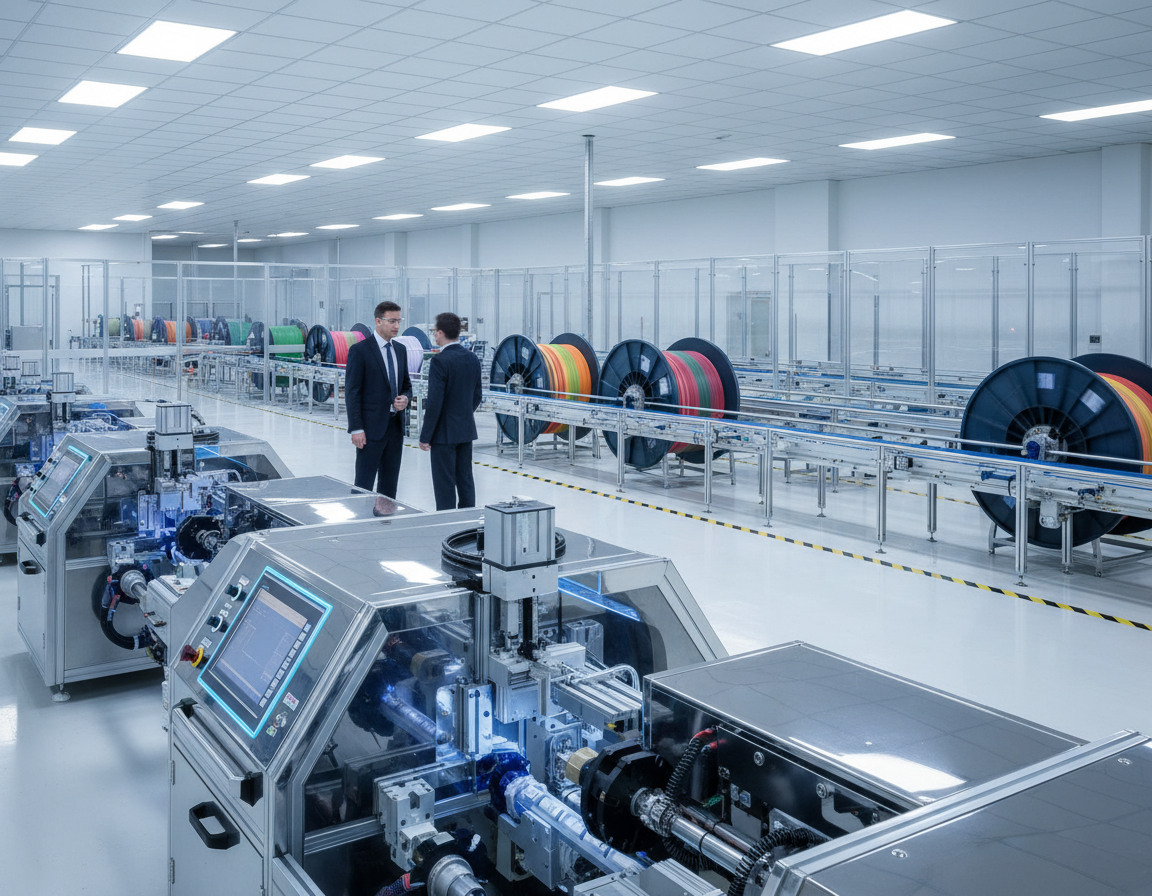

SZ stranding lines use servo-controlled pay-off and take-up units to handle up to 24 fibers with accurate lay length. Fiber coloring machines employ multi-channel UV curing to mark fibers to industry color codes.
Sheathing and extrusion stations produce PE, PVC, or LSZH jackets. Armoring units add steel tape or wire for outdoor protection. Cooling troughs and UV dryers stabilize profiles before testing.
How Production Systems Evolved From Traditional To Advanced
Early plants used manual and semi-automatic modules. Lines were separate, with hand transfers and basic controls. Modern facilities shift toward PLC-controlled, synchronized systems with touchscreen HMIs.
Remote diagnostics and modular turnkey setups support rapid changeover between simplex, duplex, ribbon, and armored formats. This transition supports automated fiber optic cable production and reduces labor dependence.
Key Technologies Driving Industry Innovation
High-precision tension control, based on servo pay-off as well as take-up, keeps geometry stable during high-output runs. Multi-zone temperature control using Omron PID and precision heaters ensures consistent extrusion quality.
High-speed UV curing and water cooling accelerate profile stabilization while reducing energy use. Integrated inline testers measure attenuation, geometry, tensile strength, crush resistance, and aging data.
| Process | Typical Module | Benefit |
|---|---|---|
| Fiber drawing | Draw tower with automated tension feedback | Uniform core size and low attenuation |
| Coating stage | Dual-layer UV curing coaters | Even 250 µm coating that improves durability |
| Fiber coloring | Multi-channel coloring machine | Reliable color identification for field work |
| Fiber stranding | SZ line with servo control for up to 24 fibers | Accurate lay length across ribbon and loose tube designs |
| Sheathing & extrusion | Multi-zone heated energy-saving extruders | Precise jacket dimensions in PE, PVC, or LSZH |
| Protection armoring | Steel tape/wire armoring units | Enhanced mechanical protection for outdoor use |
| Cooling & curing | Water troughs and UV dryers | Quicker profile setting with fewer defects |
| Testing | Real-time attenuation and geometry measurement | Live quality control and compliance reporting |
Compliance with IEC 60794 and ITU-T G.652D/G.657 variants is standard. Manufacturers typically certify to ISO 9001, CE, and RoHS. These credentials support diverse applications, from FTTH drop cable production to armored outdoor runs and data center high-density solutions.
Choosing cutting-edge fiber optic manufacturing equipment together with modern manufacturing equipment allows firms meet tight tolerances. That decision enables efficient automated fiber optic cable manufacturing as well as positions companies to deliver on scale together with quality.
Essential Equipment In Fiber Secondary Coating Line Operations
The secondary coating stage is critical, giving drawn optical fiber its final diameter and mechanical strength. It prepares the fiber for stranding and cabling. A well-tuned fiber secondary coating line controls coating thickness, adhesion, and surface quality. That protects the glass during handling.
Producers aiming for high-yield, high-speed fiber optic cable production must match material, tension, and curing systems to process requirements.
High-speed secondary coating processes rely on synchronized pay-off, coating heads, together with UV ovens. Current systems achieve high manufacturing rates while minimizing excess loss. Precise tension control at pay-off as well as winder stages prevents microbends and helps ensure consistent coating thickness across long runs.
Single and dual layer coating applications address different market needs. Single-layer setups provide basic mechanical protection and a simple optical fiber cable production machine footprint. Dual-layer lines combine a harder inner layer with a softer outer layer to improve microbend resistance and stripability. This is useful when fibers are prepared for connectorization.
Temperature control and curing systems are critical to final fiber performance. Multi-zone heaters and Omron PID controllers guide screw/barrel extruders to stable melt flow for LSZH or PVC compounds. UV curing ovens and water trough cooling stabilize the coating profile and reduce variation in excess loss; targets for high-quality single-mode fiber often aim for ≤0.2 dB/km at 1550 nm after extrusion.
Key components from trusted suppliers improve uptime as well as precision in an optical fiber cable manufacturing machine. Extruders such as 50×25 models, screws and barrels from Jinhu, and bearings from NSK are common. Motors from Dongguan Motor, inverters by Shenzhen Inovance, together with PLC/HMI platforms from Siemens or Omron deliver robust control together with monitoring for continuous runs.
Operational parameters support preventive maintenance as well as process tuning. Typical pay-off tension ranges from 0.4 to 1.5 N for fiber reels, while radiation together with curing speeds are adjusted to material type together with coating thickness. A preventive maintenance cycle around six months keeps secondary coating processes stable and supports reliable high-output fiber optic cable manufacturing.
Fiber Draw Tower And Optical Preform Handling
The fiber draw tower is the core of optical fiber drawing. This line softens a glass preform in a multi-zone furnace. Then, it pulls a continuous strand with precise diameter control. That step sets the refractive-index profile and attenuation targets for downstream processes.
Process control on the tower uses real-time diameter feedback and tension management. This prevents microbends. Cooling zones and closed-loop systems keep geometry stable during the optical fiber cable production process. Modern towers log metrics for traceability and rapid troubleshooting.
Output quality supports single-mode fibers such as ITU-T G.652D and bend-insensitive types like G.657A1/A2 for FTTH networks. Draws routinely meet stringent loss figures. Excess loss after coating is kept at or below 0.2 dB/km for high-performance single-mode fiber.
Integration with secondary coating lines requires careful pay-off control. A synchronized handoff preserves alignment together with tension as the fiber enters coating, coloring, or ribbon count stations. This connection ensures the optical fiber drawing step feeds smoothly into cable assembly.
Equipment vendors such as Shanghai Weiye offer turnkey options. These include testing stations for attenuation, tensile strength, together with geometric tolerances. These integrated features help manufacturers scale toward fast-cycle fiber optic cable line output while maintaining ISO-level output quality checks.
| System Feature | Purpose | Typical Goal |
|---|---|---|
| Multi-zone furnace | Uniform preform heating for stable glass viscosity | Stable draw speed and refractive profile |
| Real-time diameter control | Control core/cladding geometry while reducing attenuation | Diameter tolerance of ±0.5 μm |
| Cooling and tension control | Reduce microbends and maintain fiber strength | Specified tension per fiber type |
| Automated pay-off integration | Secure handoff to secondary coating and coloring | Synced feed rates for zero-slip transfer |
| On-line test stations | Validate attenuation, tensile strength, geometry | Single-mode loss target of ≤0.2 dB/km after coating |
Advanced SZ Stranding Line Technology For Cable Assembly
The SZ stranding method creates alternating-direction lays that cut axial stiffness and boost flexibility. That makes it ideal for drop cables, building drop assemblies, and any application that needs a flexible core. Manufacturers moving toward automated fiber optic cable manufacturing use SZ approaches to meet tight bend and axial tolerance specs.
Precision in the stranding stage protects optical performance. Advanced precision stranding equipment uses servo-driven carriers, rotors, as well as modular pay-off racks that accept up to 24 fibers. These systems deliver precise lay-length control and allow quick reconfiguration for different cable types.
Automated tension control systems keep fibers within safe limits from pay-off to take-up. Servo pay-offs, capstans, and haul-off units maintain constant linear speed and target tensions. Typical fiber pay-off tension ranges from 0.4 to 1.5 N while reinforcement pay-offs run between 5 and 20 N.
Integration with a downstream fiber cable sheathing line streamlines production and reduces handling. Extrusion of PE, PVC, or LSZH jackets at 60–150 m/min syncs with stranding through a Siemens PLC. Cooling troughs and UV dryers stabilize the jacket profile right after extrusion to prevent ovality and reduce mechanical stress.
Optional reinforcement and armoring modules add strength without compromising flexibility. Reinforcement pay-off racks accept steel wires or FRP rods. Armoring units wrap steel tape or wire with adjustable tension to meet specific mechanical ratings.
Built-in output quality control prevents defects before cables leave the line. In-line geometry checks, fiber strain monitors, and optical attenuation measurement detect excess loss or mechanical strain caused by stranding or sheathing. These checks support continuous automated fiber optic cable manufacturing workflows together with cut rework.
This combination of a robust sz stranding line, high-end precision stranding equipment, together with a synchronized fiber cable sheathing line provides a scalable solution for manufacturers. That combination raises throughput while protecting optical integrity together with mechanical performance in finished cables.
Fiber Coloring Machines And Identification Systems
Coloring and identification are critical in fiber optic cable production. Accurate color application minimizes splicing errors and accelerates field work. Modern equipment combines fast coloring with inline inspection, ensuring high throughput and low defect rates.
Today’s high-speed coloring technology supports multiple channels and quick curing. Machines can operate 8 to 12 color channels simultaneously, aligning with secondary coating lines. UV curing at speeds over 1500 m/min ensures color and adhesion stability for both ribbon and counted fibers.
The following sections discuss standards together with coding prevalent in telecom networks.
Color coding adheres to international telecom standards for 12-color cycles together with ribbon schemes. That compliance aids technicians in installation as well as troubleshooting. Consistent coding significantly cuts field faults together with accelerates network deployment.
Quality control integrates advanced fiber identification systems into production lines. In-line cameras, spectrometers, and sensors detect color discrepancies, poor saturation, and coating flaws. The PLC/HMI interface alerts to issues and can pause the line for correction, safeguarding downstream processes.
Machine specifications are vital for uninterrupted runs and material compatibility. Leading equipment accepts UV-curable pigments and inks, compatible with common coatings and extrusion steps. Pay-off reels accommodating 25 km or 50 km spools ensure continuous operation on high-volume lines.
Supplier support is essential for US manufacturers adopting these technologies. Shanghai Weiye and other established vendors offer customizable channels, remote diagnostics, and onsite training. That support model reduces ramp-up time and enhances the reliability of fiber optic cable production equipment.
Specialized Solutions For Fiber In Metal Tube Production
Metal tube as well as metal-armored cable assemblies deliver robust protection for fiber lines. They are ideal for direct-buried together with industrial applications. The controlled routing of coated fibers into metal tubes prevents microbends, ensuring optical performance remains within specifications.
Processes depend on precision filling and centering units. These modules, in conjunction with fiber optic cable manufacturing equipment, ensure concentric placement and controlled tension during insertion.
Armoring steps involve the use of steel tape or wire units with adjustable tension and wrapping geometry. That approach benefits armored fiber cable production by preventing compression of fiber elements. It also keeps reinforcement wires at typical diameters of ø0.4–ø1.0 mm.
Coupling armoring with downstream sheathing together with extrusion lines results in a finished outer jacket made of PE, PVC, or LSZH. An optical fiber cable production machine must handle pay-off reels sized for reinforcement as well as align featuring sheathing tolerances.
Quality checks include crush, tensile, together with aging tests to confirm the armor does not exceed allowable stress on fibers. Standards-based testing ensures long-term reliability in field conditions.
Turnkey solutions from established manufacturers integrate metal tube handling with SZ stranding and sheathing lines. These solutions include operator training and maintenance schedules to sustain throughput on fiber optic cable manufacturing equipment.
Buyers should consider compatibility with armored fiber cable production modules, ease of changeover, and service support for field upgrades. Such considerations reduce downtime and protect investment in an optical fiber cable production machine.
Fiber Ribbon Line And Compact Fiber Unit Manufacturing
Modern data networks require efficient assemblies that pack more fibers into less space. Manufacturers employ a fiber ribbon line to create flat ribbon assemblies for rapid splicing. This method uses parallel processes and precise geometry to meet the needs of MPO trunking and backbone cabling.
Advanced equipment ensures accuracy and speed in production. A fiber ribbon line typically integrates automated alignment, epoxy bonding, precise curing, and shear/stacking modules. In-line attenuation and geometry testing reduce rework, maintaining high yields.
Compact fiber unit production focuses on tight tolerances together with material choice. Extrusion together with buffering create compact fiber unit constructions with typical tube diameters from 1.2 to 6.0 mm. Common materials include PBT, PP, together with LSZH for durability together with flame performance.
High-density cable solutions aim to enhance rack as well as tray efficiency in data centers. By increasing fiber count per unit area, these designs shrink cable diameter together with simplify routing. They are compatible featuring MPO trunking and high-count backbone systems.
Production controls as well as speeds are critical for throughput. Advanced lines can reach up to 800 m/min, depending on configuration. PLC as well as HMI touch-screen control enable quick parameter changes as well as synchronization across multiple lines.
Quality together with customization remain key differentiators for manufacturers like Shanghai Weiye. Electronic monitoring, customizable ribbon counts, stacking patterns, and turnkey integration featuring sheathing together with testing stations support bespoke high-output fiber cable manufacturing line requirements.
| Key Feature | Fiber Ribbon System | Compact Unit | Benefit To Data Centers |
|---|---|---|---|
| Typical operating speed | As high as 800 m/min | Up to 600–800 m/min | Greater throughput for large-scale deployments |
| Core processes | Automated alignment, epoxy bonding, curing | Extrusion, buffering, and tight-tolerance winding | Improved geometry consistency with lower insertion loss |
| Material set | Specialized tapes and bonding resins | PBT, PP, and LSZH jackets/buffers | Long-term reliability and safety compliance |
| Inspection | Real-time attenuation and geometry inspection | Tension monitoring and dimensional control | Lower failure rates and faster rollout |
| Line integration | Sheathing integration and splice-ready stacking | Modular compact units for dense cable solutions | Simplified MPO trunking and backbone construction |
Optimizing High-Speed Internet Cables Production
Efficient high-speed fiber optic cable production relies on precise line setup and strict process control. To meet US market demands, manufacturers must adjust pay-off reels, extrusion dies, and tension systems. That ensures optimal output for flat, round, simplex, and duplex FTTH profiles.
Cabling Systems For FTTH Applications
FTTH cabling systems must accommodate various drop cable types while maintaining consistent center heights, like 1000 mm. Production lines for FTTH include 2- together with 4-reel pay-off options. They also feature reinforcement pay-off heads for enhanced strength.
Extruder models, such as a 50×25, control jacket speeds between 100 and 150 m/min, depending on LSZH or PVC. Extrusion dies for 2.0×3.0 mm profiles guarantee reliable jackets for field installation.
Fiber Pulling Process Quality Assurance
Servo-controlled pay-off and take-up units regulate fiber tension between 0.4–1.5 N to prevent excess loss. Inline systems conduct fiber pull testing, attenuation checks, mechanical tensile tests, and crush and aging cycles. Such tests verify performance.
Key control components include Siemens PLCs as well as Omron PID controllers. Motors from Dongguan Motor as well as inverters from Shenzhen Inovance ensure stable operation and easier maintenance.
Meeting Optical Fiber Drawing Industry Standards
A well-tuned fiber draw tower produces fibers that meet ITU-T G.652D together with G.657 standards. This goal is to achieve ≤0.2 dB/km excess loss at 1550 nm for high-consistency single-mode fiber.
Choosing the best equipment for FTTH cables involves evaluating speed, customization, warranty, as well as local after-sales support. Top FTTH cable production line manufacturers deliver turnkey layouts, remote monitoring, and operator training. That lowers ramp-up time for US customers.
Conclusion
Advanced FTTH cable making machinery integrates various components. These include fiber draw towers, secondary coating, coloring lines, SZ stranding, and ribbon units. This system additionally contains sheathing, armoring, as well as automated testing for consistent high-speed fiber manufacturing. A complete fiber optic cable line output line is designed for FTTH as well as data center markets. This line enhances throughput, keeps losses low, and maintains tight tolerances.
For U.S. manufacturers and system integrators, partnering with reputable suppliers is key. They should offer turnkey systems with Siemens or Omron-based controls. This includes on-site commissioning, remote diagnostics, and lifetime technical support. Companies like Shanghai Weiye Optic Fiber Communication Equipment Co provide integrated solutions. Such solutions simplify automated fiber optic cable manufacturing and reduce time to production.
Technically, ensure line configurations adhere to IEC 60794 and ITU-T G.652D/G.657 standards. Verify tension and curing settings to meet excess loss targets, such as ≤0.2 dB/km at 1550 nm. Adopt preventive maintenance cycles of roughly six months for reliable 24/7 operation. When planning a new FTTH cable production line, first evaluate required cable types. Collect product drawings and standards, request detailed equipment specs and turnkey proposals, and schedule engineer commissioning and operator training.
